Concrete Cube Compression Test Machine 2000 KN Automatic

Price upon request

  • Product is not available

-
+
Send Enquiry


.

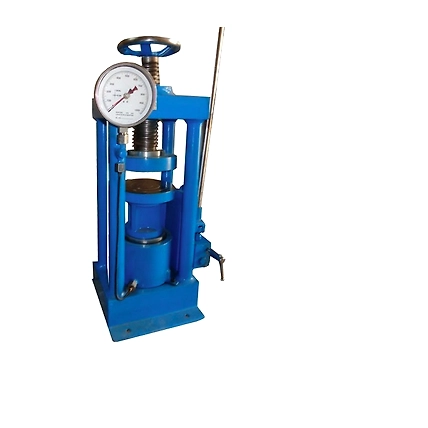

1. Four-Pillar, Three Pressure Gauge Compression Testing Machine


A hand-operated or semi-automatic system with a robust four-pillar steel frame.


Features include adjustable upper and lower platen, a ball-seated platen, spacer inserts for different sample sizes, and multiple pressure gauges including a maximum-load pointer

Multitech Scientific Instruments

.

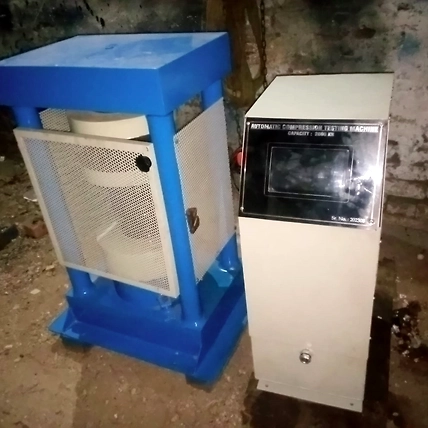

2. Automatic Compression Testing Machine (Automatic / PLC-controlled)


Equipped with a heavy-duty load frame, touch-screen PLC controller, fast/slow loading rate control ranging from ~1 kN/sec to ~10 kN/sec, auto-report generation, data storage (up to ~10,000 logs), and report download via scanner or phone

Aajjo

.

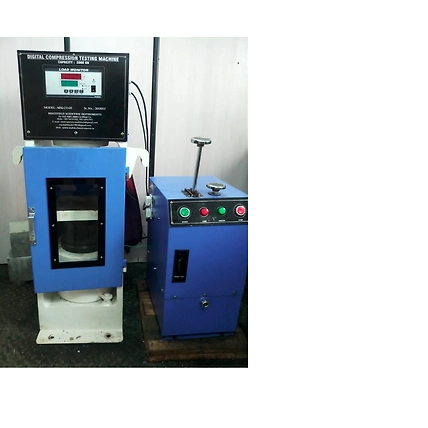

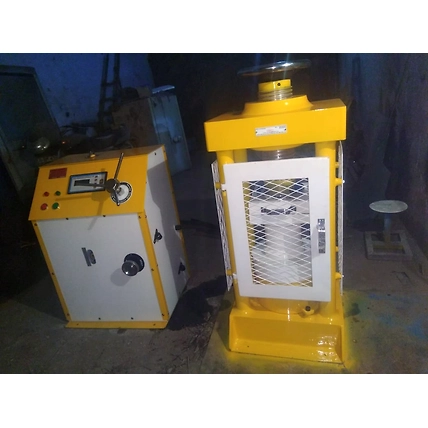

3. Semi-Automatic Compression Testing Machine


Hydraulic operation, stainless steel construction, capacity up to 2000 kN, automatic-grade functionality (models MSI 2059A/B)

Multitech Scientific Instruments

.


4. Universal Compression/Tension Tester


Designed for the plastic pipe industry, capable of both compression and tension testing.


Provides data storage, report retrieval, and computer-controlled testing with real-time load-deformation display—a more advanced solution for automated environments


.

  • Additional Information


    • Large key catching display - 7” touch Screen operation
    • Capacity available from  100 Kn to 3000 KN
    • Load Least Count 0.1 kN
    • Spherical seating arrangement on upper platen for self-centering to apply load in equal proportion on the sample
    • Type of pumping: Reciprocating Pump servo motor controlled for precise load
    • Automatic Release the load after performed the Test through Software.
    • accuracy of ± 1%
    • Pace rate controlled through dedicated software from 0.5 kn/s to20 kn/s.
    • Facility to access data through USB
    • Load v/s Time graph generating automatic on Touch Display directly
    • Automatic report generation after test, hue storage capacity of 10000 logs
    • Facility to insert different shapes and area in the Touch screen controller to calculate direct reading in KN
    • Comes with Flexural & Aggregate testing mode
    • 4 Pillar Type Heavy Duty Load Frame.
    • RAM 182 mm diameter
    • Platendiameter with hardness is 55 HRC and flatness tolerance 0.03 mm, 305 mm Gap between Platens.
    SAFETY FEATURES
    • Max. pressure valve to avoid machine overloading•
    • Piston travel limit switch, Travel limit 50 mm•
    • Emergency stop button.
    • And Door Close Safety Switch
    LOADING FRAME
    4 Pillar Type Heavy Duty Load Frame having a top cross head, base with precision ground hydraulic piston fixed to the base
    Heavy duty spherical seating arrangement allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.
    Hardened, ground & polished platens. Heavy duty upper platen with oil filled ball seating arrangement for high stability.
