Standard Used : IS 2386 (PART IV) 9377 & BS 812

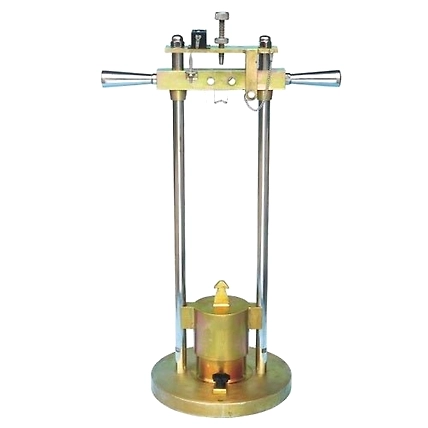

The instrument consists of a circular base with Two vertical guides. The Hammer of weight 13.50 to 14 Kg can be
raised to fall freely down the vertical guides. The Height of fall can be adjusted through 380 +/- 5mm. The Hammer
is provided with a locking arrangement. The hammer falls freely to the base.
Supplied complete with metal measure 75 mm dia x 50 mm high (For specimen preparation) and Tamping Rod 230 mm
long x 10 mm diameter.A Blow Counter to count the number of strokes is fitted on top of the equipment
